Utility Bridge
A crossing that gives back.
A pedestrian bridge connecting the Carriageworks precinct with Redfern, conceived as both public space and local energy infrastructure. Solar harvesting and an exposed pipe network bring the distribution of heat and power into the everyday experience of crossing.
Individual academic project · Leonardo Ramia
Connecting across the rail corridor.
The project begins with a gap in pedestrian connections between Carriageworks and Redfern. The proposed crossing combines a public route with the collection and distribution of local energy.

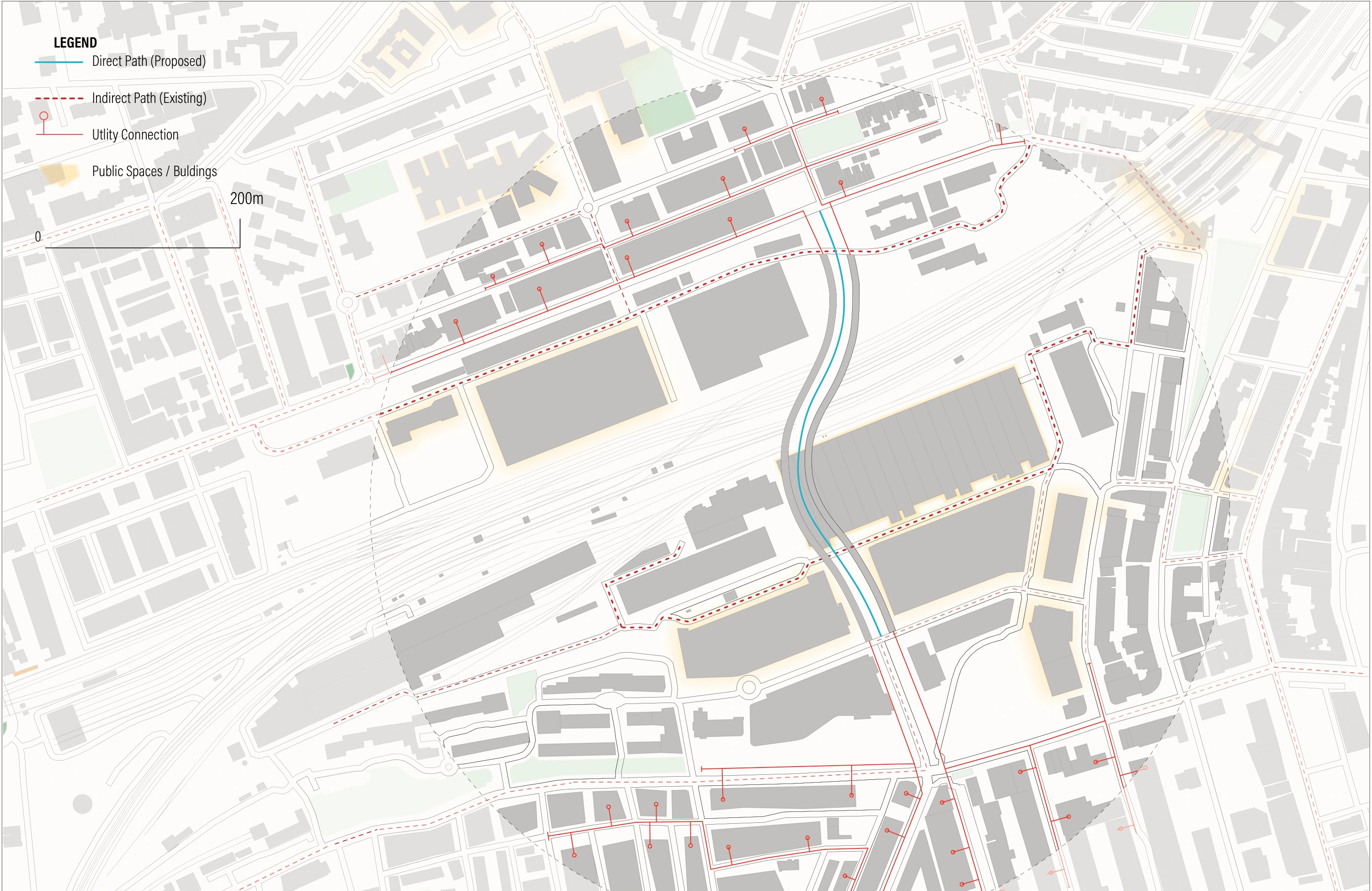

Proposed and existing routes, utility connections and surrounding public spaces.

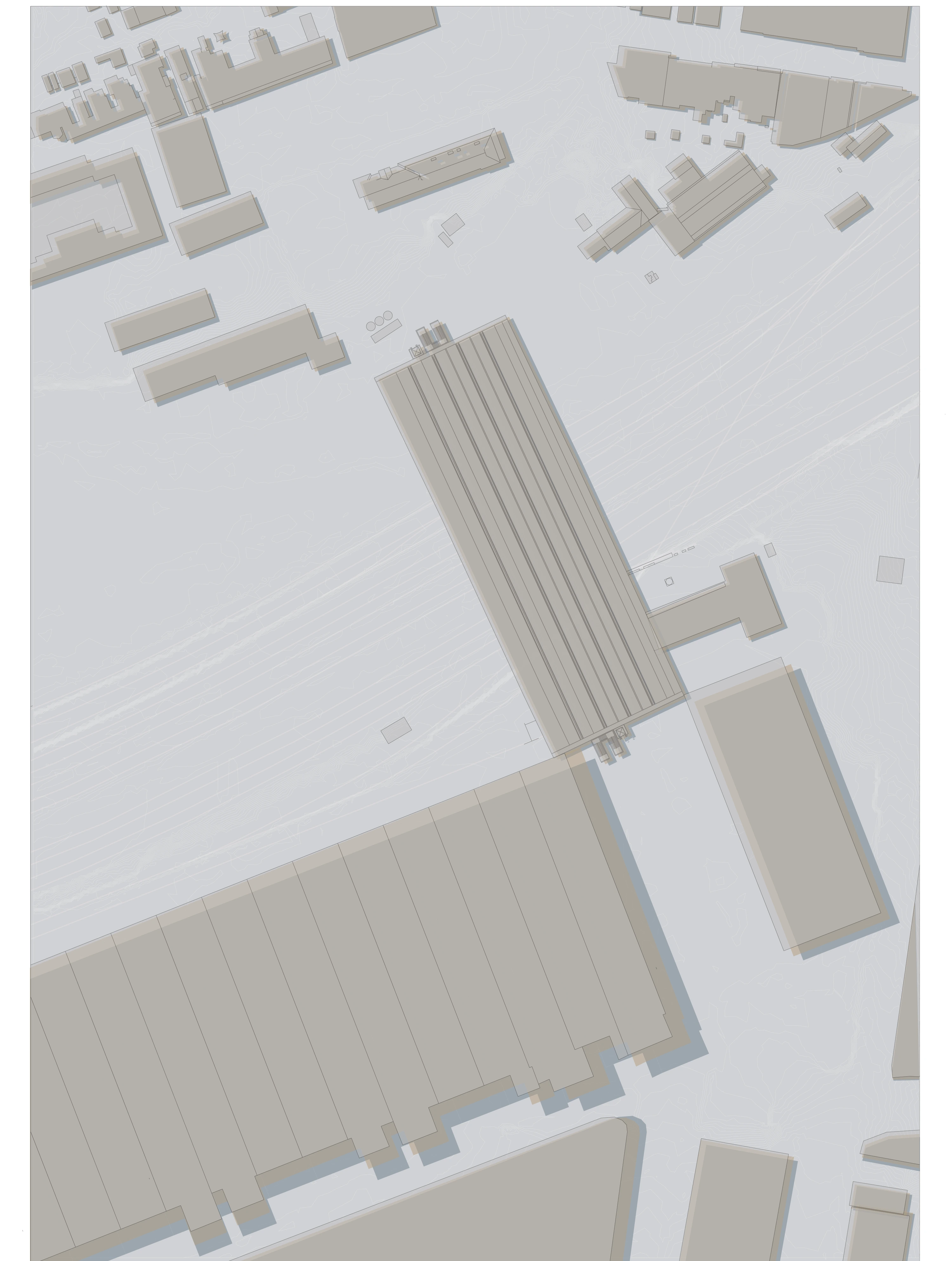

The bridge is positioned across the rail corridor in relation to the surrounding buildings.
A bridge with room to stay.
The inhabited deck combines movement with places to pause. The plans and cross section show the relationship between circulation, seating, bicycle facilities and the roof above.

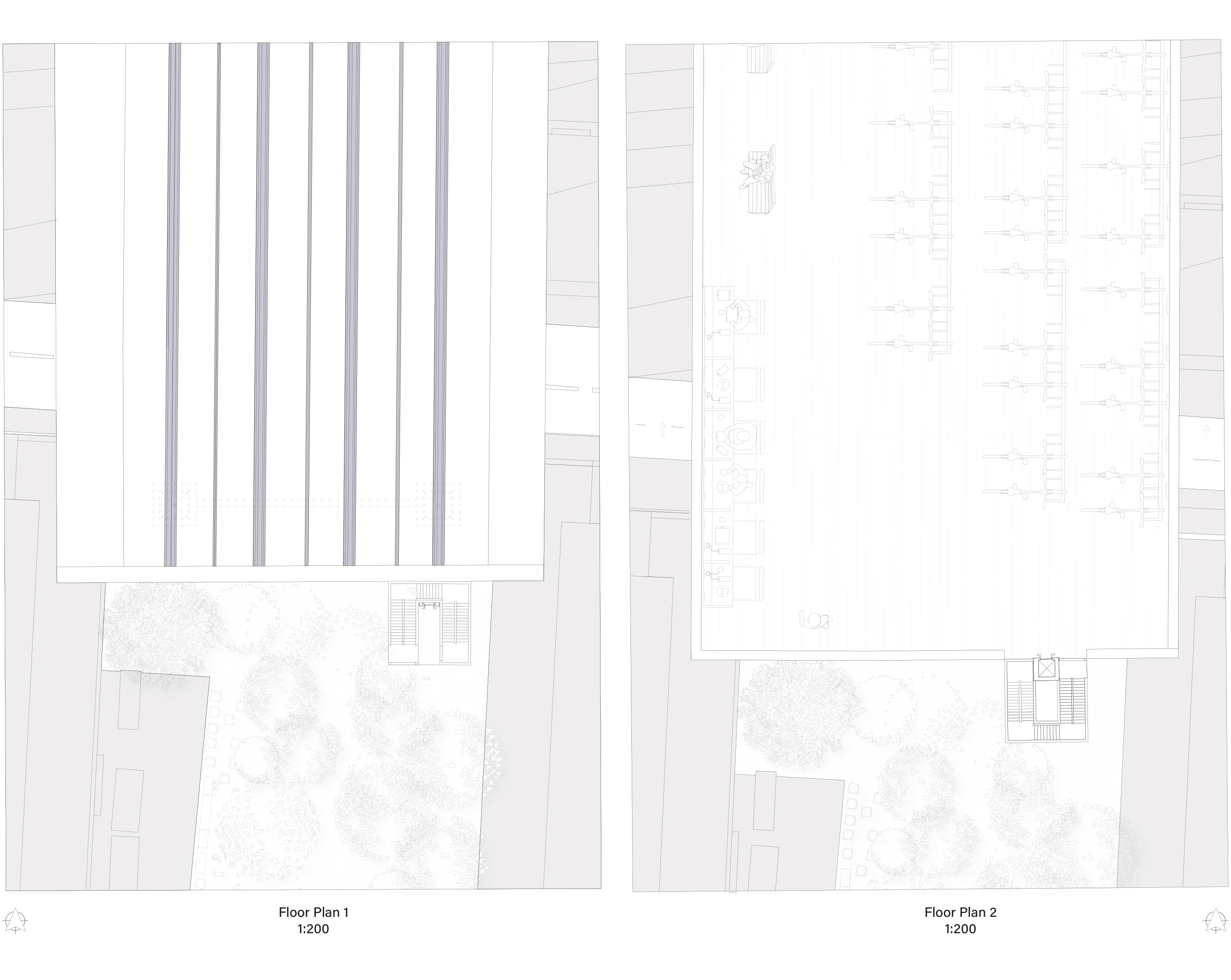

The two plan drawings describe the arrangement of the roof and occupied deck.

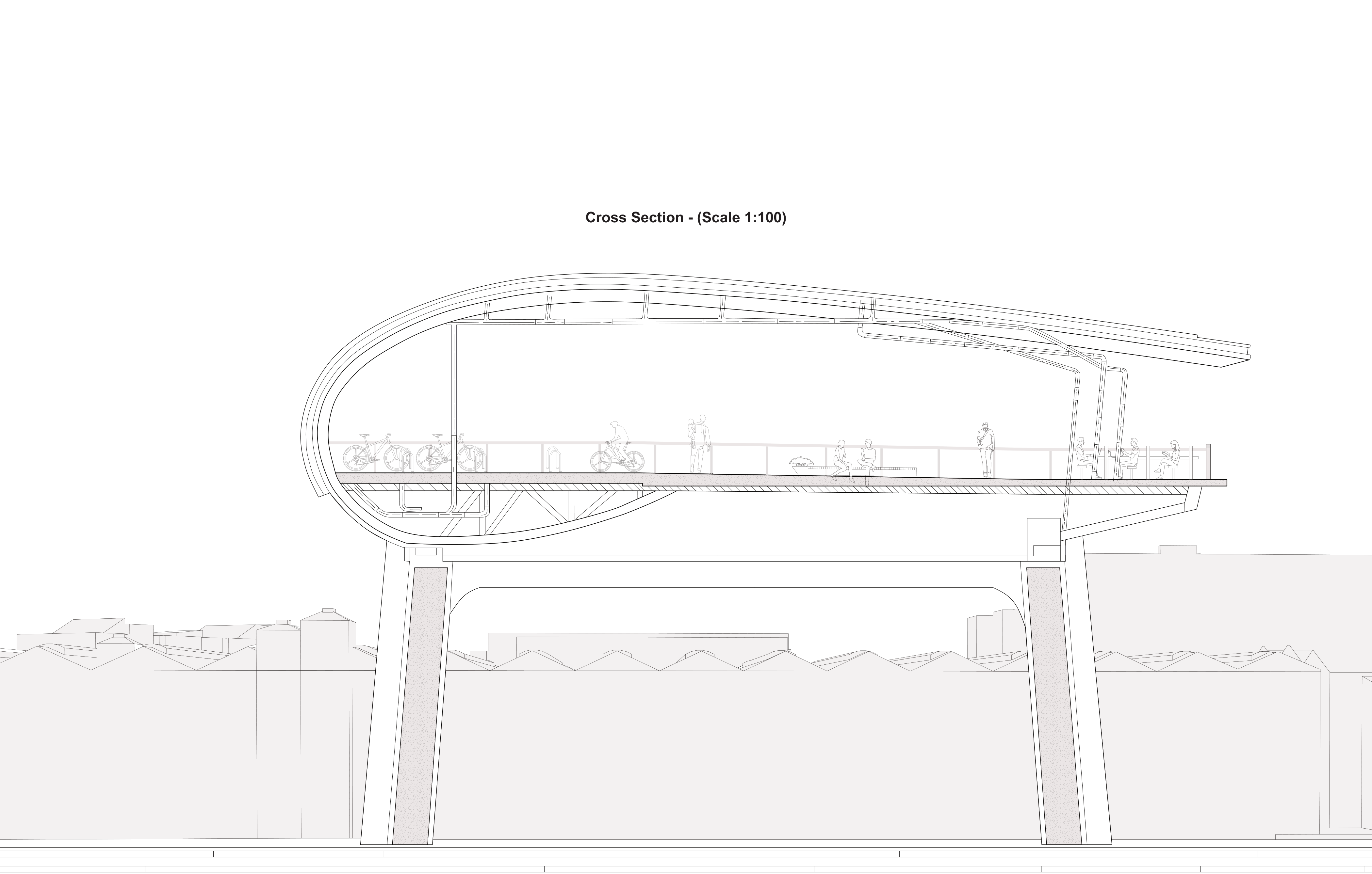

The section brings the sheltered deck, supporting columns and services into one view.
Making the infrastructure visible.
The roof, occupied deck and lower service zone are expressed as separate layers. These drawings examine how the structural assembly accommodates solar collection, storage and everyday use.

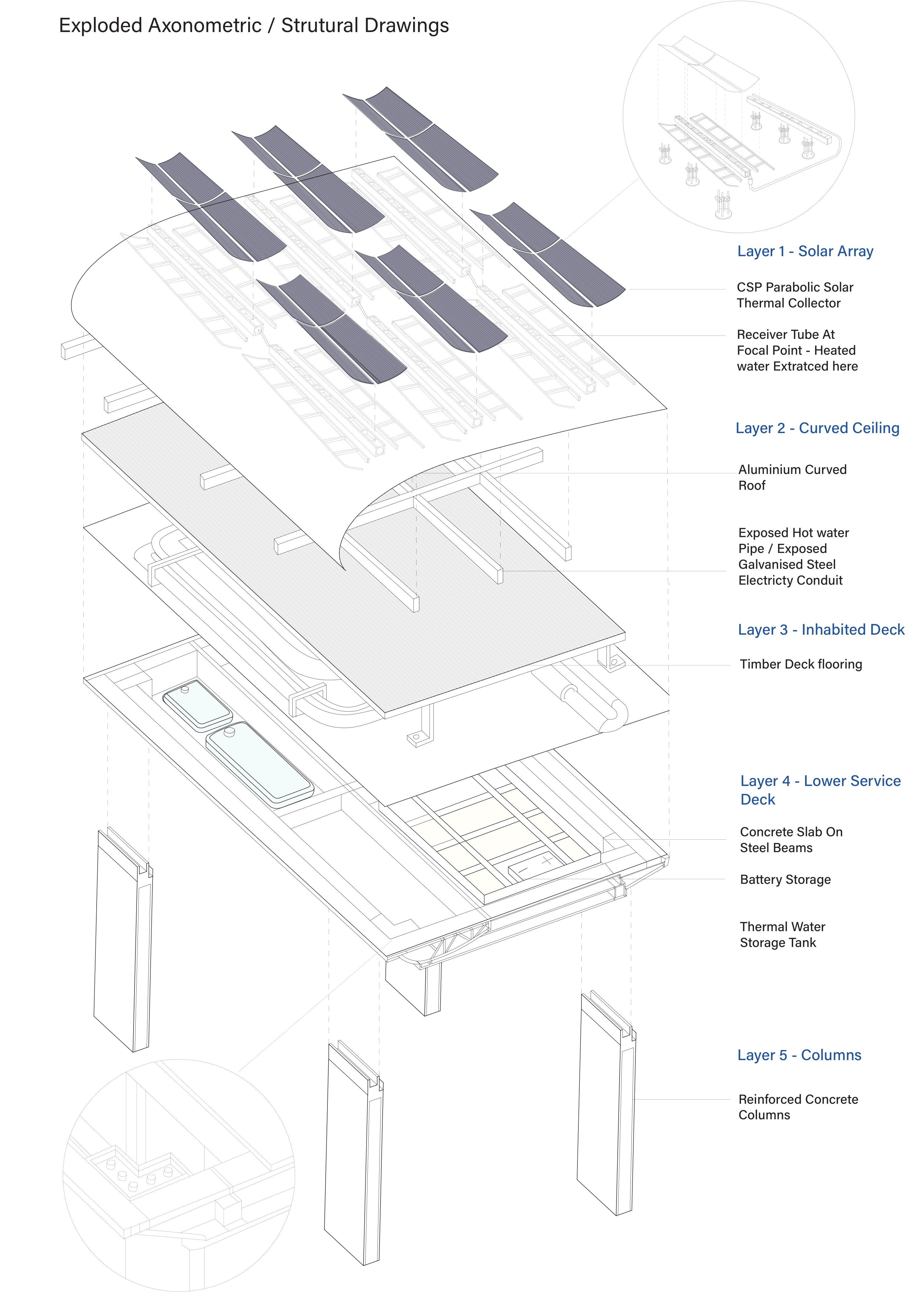

Roof, exposed services, timber deck, lower service deck and reinforced concrete supports.

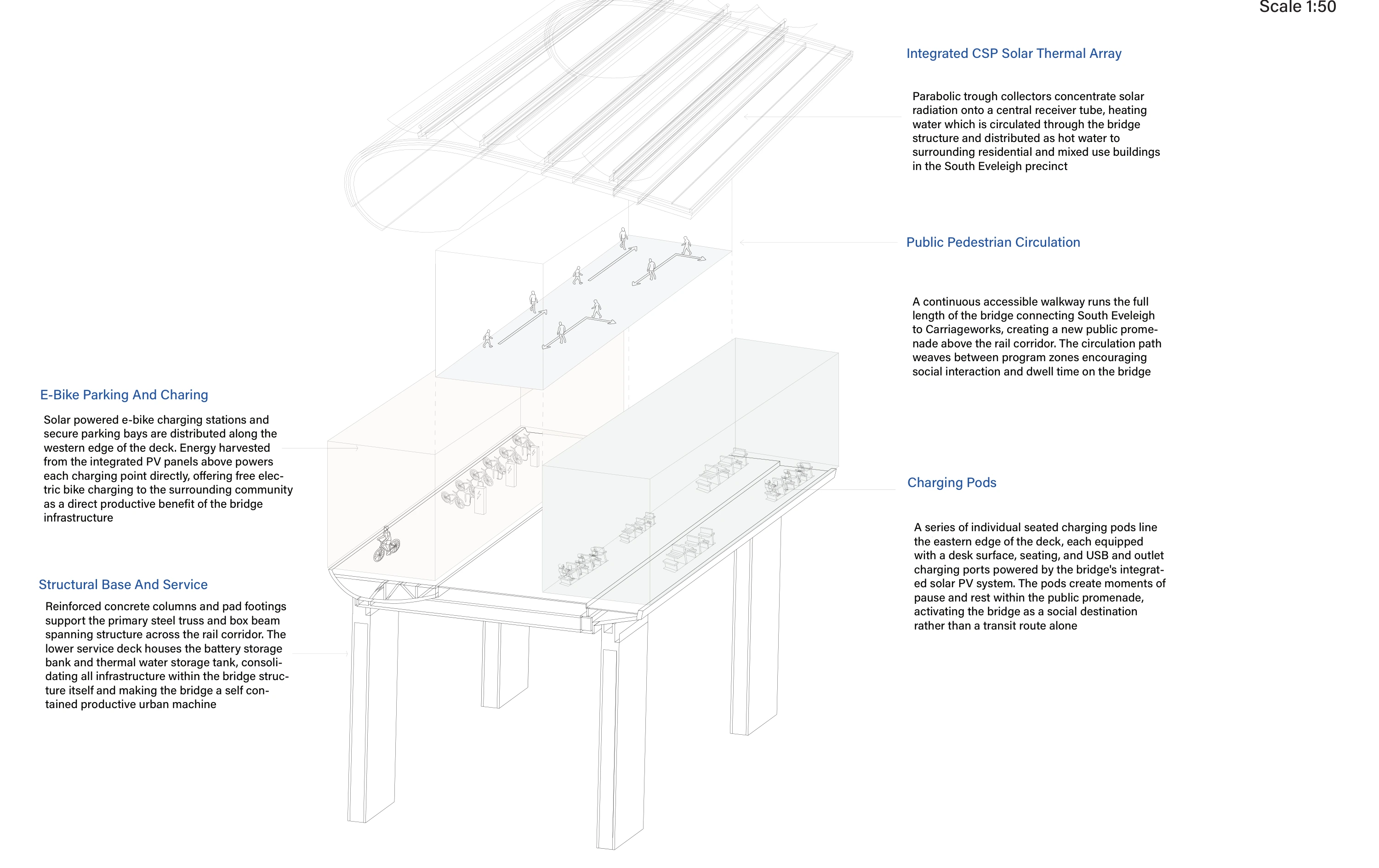

The relationship between energy collection, public occupation and the service layer.

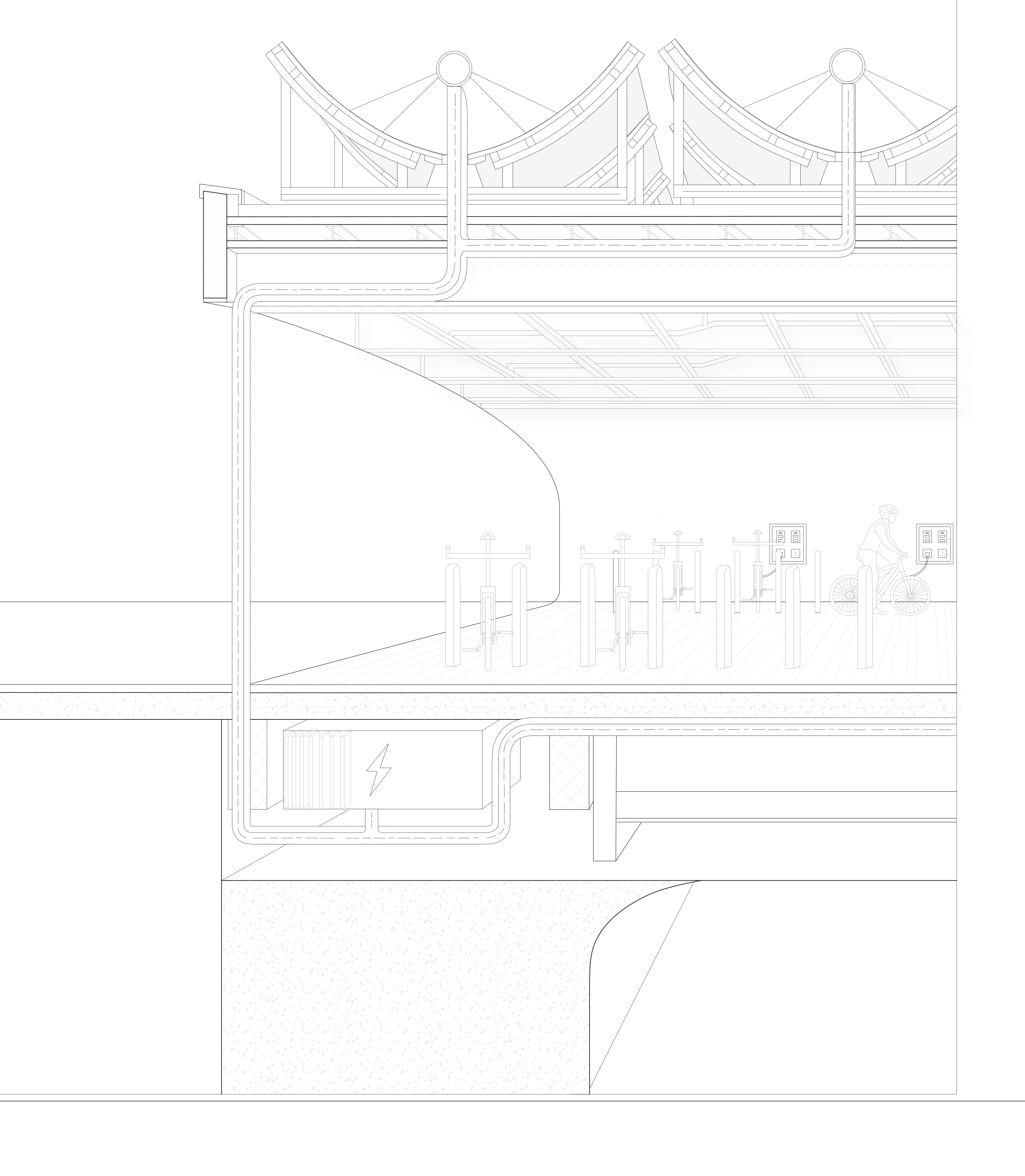

A closer view of the occupied deck and supporting construction.

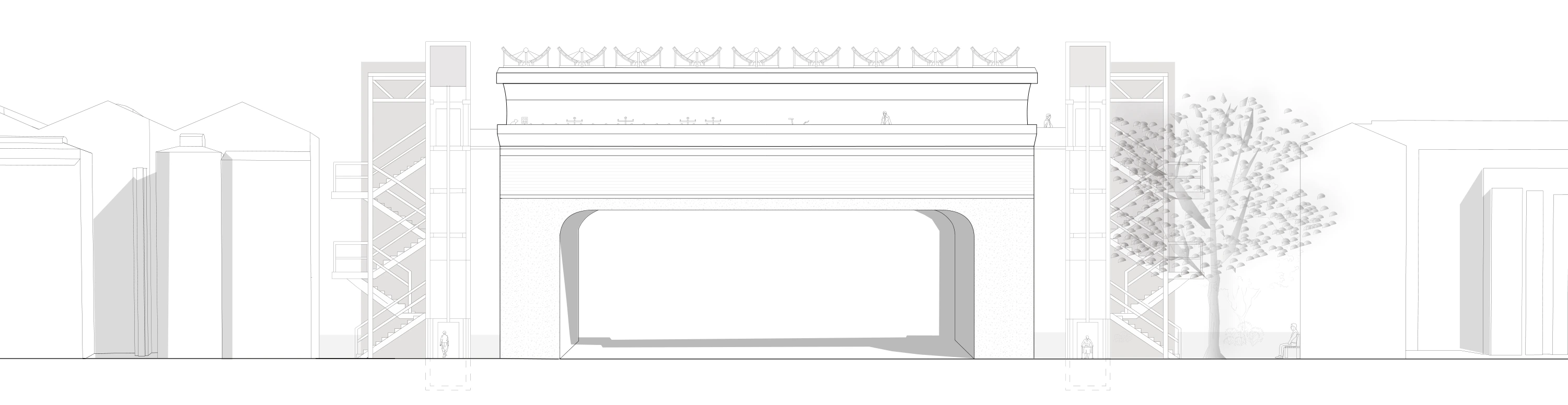

The crossing and its approaches in relation to the rail corridor.
Life beneath a productive roof.
Exterior and interior perspectives explore the bridge as a public place, from the roof’s profile to the sheltered promenade and its outlook across the city.
Solar collection becomes part of the roof’s form.
The edge of the deck frames views toward the surrounding city.
Exposed structure and a timber deck define the sheltered public space.
Cycling, seating and movement share the crossing.
Utility Bridge
Individual academic project · Leonardo Ramia
